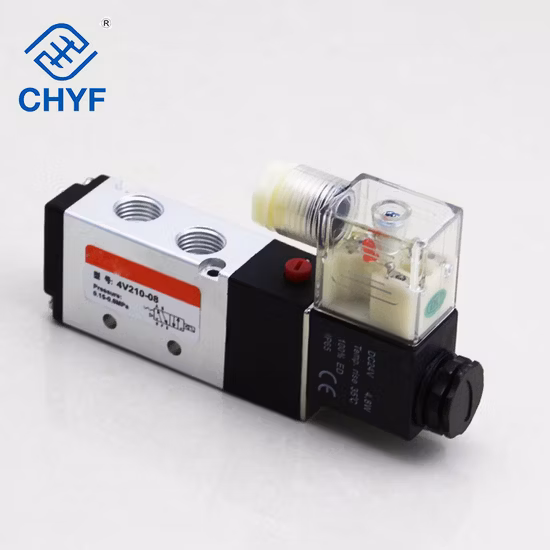

Airtac Type Passenger Solenoid Valve 4V210-08V 4V310-10 Solenoid Electric Valve Pneumatic Control Valve 220V Gas Valve 24V

Airtac Type Passenger Solenoid Valve 4V210-08V 4V310-10 Solenoid Electric Valve Pneumatic Control Valve 220V Gas Valve 24V

Specification Pneumatic quick coupling is a quick coupling mainly used for air piping and pneumatic tools. It can realiz

Send your inquiry

DESCRIPTION

Basic Info
Model NO. 4V210
Pressure High Temperature
Valve Structure Direct-Acting Piston Structure
Power Supply AC and DC
Usage Safety, Emptying, Drain, Temperature Control, Flow Control
Standard DIN
Application Industrial Usage, Water Industrial Usage, Household Usage
Transport Package Inner Box+Carton Box
Specification ISO9001: 2008; CE; SGS
Trademark Ordinary and branded
Origin China
HS Code 84149090
Production Capacity 100000PCS/Year
Product Description

Specification

Model4V110-064V120-064V130-064V210-084V220-084V230-08
Working MediumAir
Action ModeInternal Pilot Type
Position5/2 Port5/3 Port5/2 Port5/3 Port
Effective Sectional Area12.0mm29.0mm216.0mm212.0mm2
Port Sizeinput=output=exhaust Port=G1/8input=output=G1/4, Exhaust Port=G1/8
LubricationNo need
Working Pressure0~0.8MPa
Proof Pressure1.0MPa
Working Temperature0~60ºC
Voltage Range±10%
Power ConsumptionAC:5.5VA DC:4.8W
Insulation GradeF Level
Protection ClassIP65(DIN40050)
Connecting TypePlug Type
Max. Operating Frequency5 Cycle/Sec3 Cycle/Sec5 Cycle/Sec3 Cycle/Sec
Min. Excitation Time0.05 Sec
Body Material Aluminum Alloy
Seal MaterialNBR

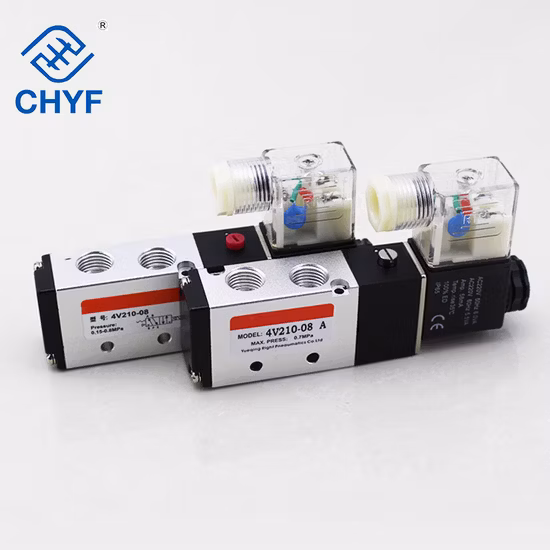

Airtac Type Passenger Solenoid Valve 4V210-08V 4V310-10 Solenoid Electric Valve Pneumatic Control Valve 220V Gas Valve 24V

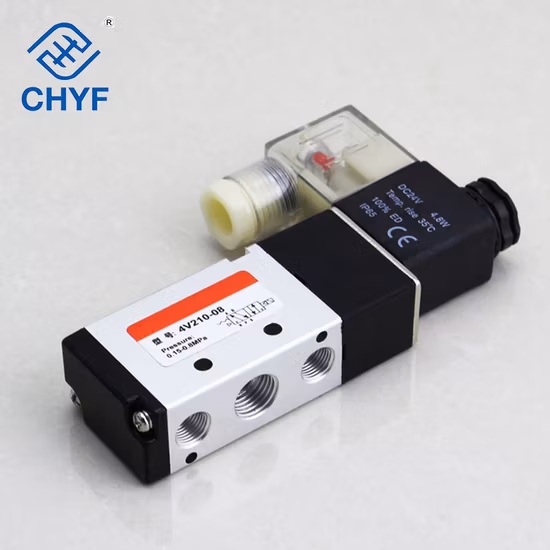

Airtac Type Passenger Solenoid Valve 4V210-08V 4V310-10 Solenoid Electric Valve Pneumatic Control Valve 220V Gas Valve 24V

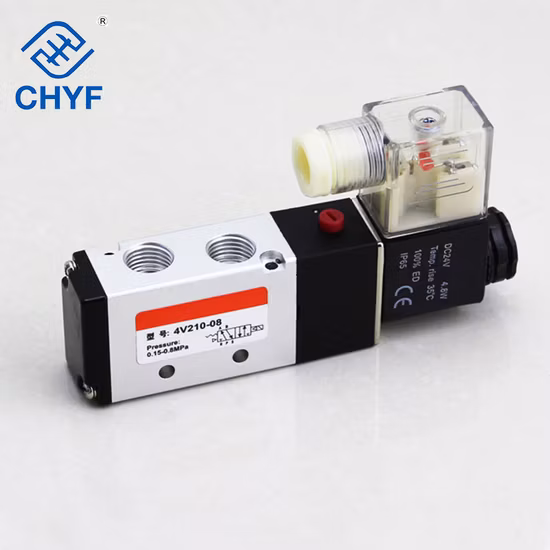

Airtac Type Passenger Solenoid Valve 4V210-08V 4V310-10 Solenoid Electric Valve Pneumatic Control Valve 220V Gas Valve 24V

Airtac Type Passenger Solenoid Valve 4V210-08V 4V310-10 Solenoid Electric Valve Pneumatic Control Valve 220V Gas Valve 24V

Airtac Type Passenger Solenoid Valve 4V210-08V 4V310-10 Solenoid Electric Valve Pneumatic Control Valve 220V Gas Valve 24V

Pneumatic quick coupling is a quick coupling mainly used for air piping and pneumatic tools. It can realize pipeline connection or disconnection without tools. When the ferrule of the mother body moves to the other end, the stainless steel ball automatically rolls outwards. The body is disconnected under the action of the common valve spring force of the parent body and the child body, and the valves of the child body and the parent body are closed separately, instantly blocking the flow of fluid.
